Onyx by Modern Decor - Aluminum Composite (ACM) Garage Door
Modern Decor Onyx — the Aperture proportion executed in aluminium composite instead of steel: a wall of dark tint behind a composite frame. Two pane arrangements, both modelled to real stock glass.

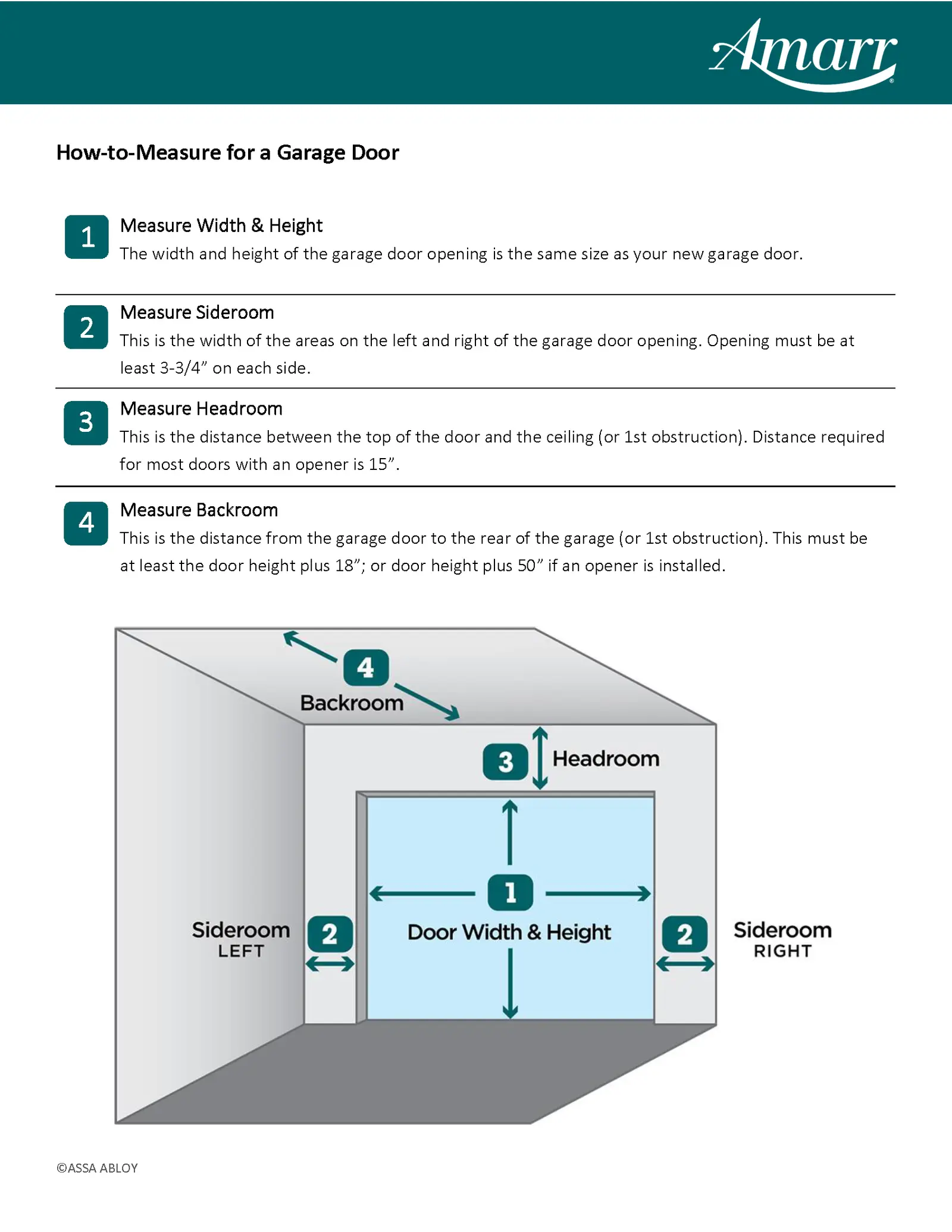

How to measure
Headroom is the space between the top of the finished opening and the ceiling — or, if something hangs lower, the space to that: a pipe, a beam, a light, the opener rail. Measure at the tightest point across the whole opening.
Two more numbers help us confirm the fit: side room, from each side of the opening to the wall (about 5″ each side for a standard track), and backroom, the depth straight back into the garage (your door height plus about 18″).
Enter your headroom to see which tracks fit.
Financing available through Synchrony Bank · Promotional/sale-priced items are not eligible for financing. Learn more →
The Onyx is our smoked-glass ACM door — the Aperture full-view shape built in ALPOLIC aluminium composite rather than woodgrain steel, the same proportions with a different material around the same dark tint.
- Glass layout: Aperture style (framed panes) — a 2.4" composite face carried right around each glazed section, two lites per section on 8- and 9-ft doors and four on a 16-ft, exactly as the Aperture is framed; or Connected panes (one band) — wider composite margins and no mullion, a band of connected stock panes running the full height of the section, centred, with the composite taking up whatever width is left: 12", 53 5/8" and 12" wide, and on a 16-ft door a fourth pane so the middle is two 53 5/8" lites connected at a fine joint.
- Cladding: 4 mm ALPOLIC aluminium composite, routed and folded, 5/8" proud of the door face
- Base door: insulated steel, R-10.25 or R-17.65
- Colors: TOB Black, BLX Black, MRO Anthracite Grey, Mica Grey, BSX Metallic Silver, SAW White
- Glass: 3 mm dark tint at stock size — never re-cut to fit a layout
- Sizes: 8x7, 8x8, 9x7, 9x8, 16x7, 16x8 — both arrangements, every size. The three-connected band is built from stock panes that are never re-cut to suit a door: what changes with the size is the composite margin around them and the pane height (21" in a 7-ft door's sections, 24" in an 8-ft door's). A 16-ft door connects a fourth pane rather than starting a second band, so the glass still reads as one run.
- Includes the heavy-duty hardware upgrade the added panel weight requires
Every size, finish and arrangement is photographed from the real piece list — what you pick is what you are shown, not one picture tinted six ways.
Onyx — the smoked-glass ACM door
The Aperture full-view door built in aluminium composite instead of woodgrain steel — the same proportions, a different material around the same dark tint. Two pane arrangements are offered, both modelled to real stock glass.
The two arrangements

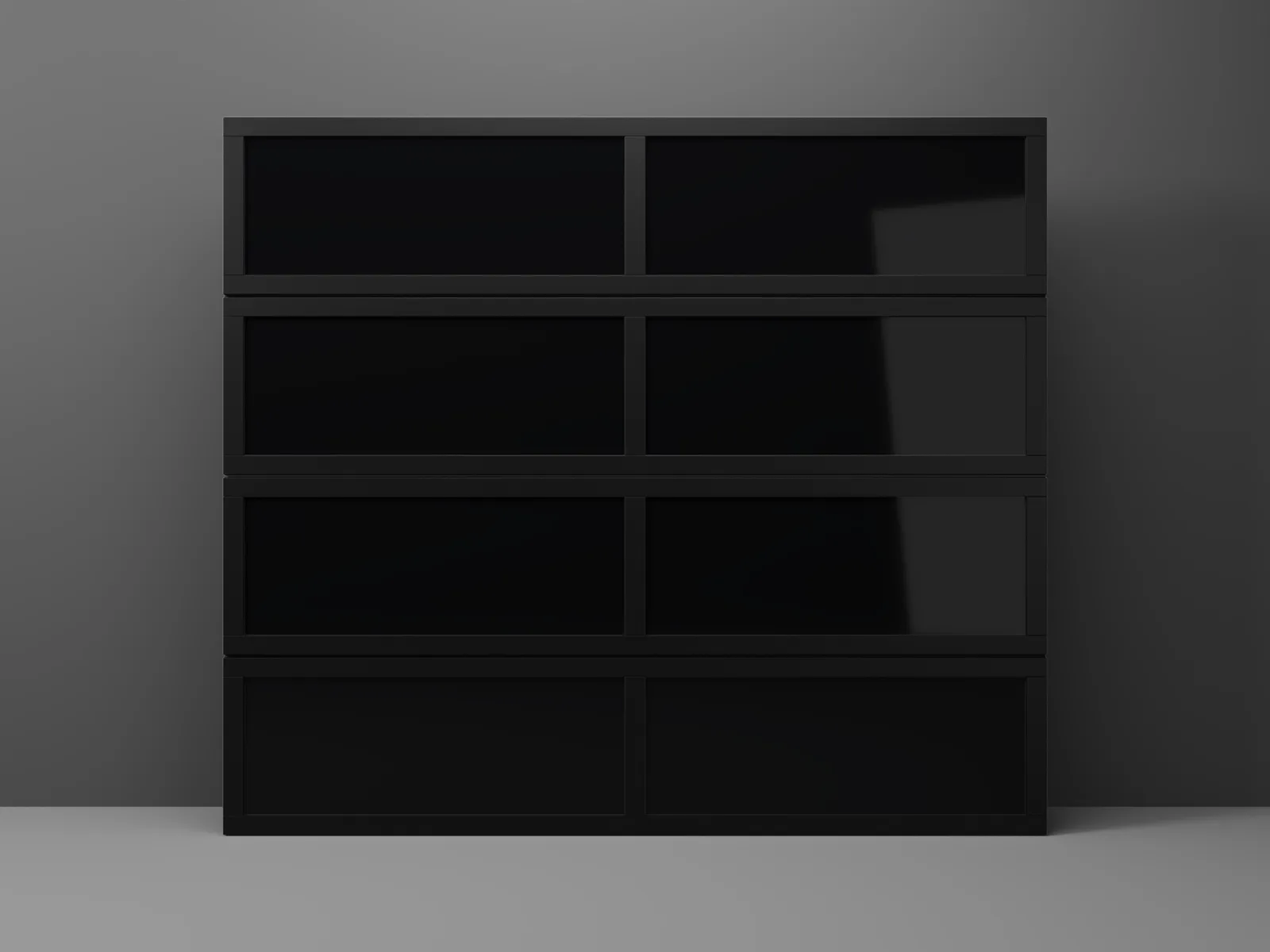

- Aperture style (framed panes) — a 2.4″ composite face carried right around each glazed section. Two lites per section on an 8- or 9-ft door and four on a 16-ft, which is exactly how the Aperture is framed; at 8×7 that is two 47 5/8 × 17″ stock panes behind a 44.4 × 16.2″ opening. Every opening is framed on all four sides, which is what gives the door the Aperture proportion.

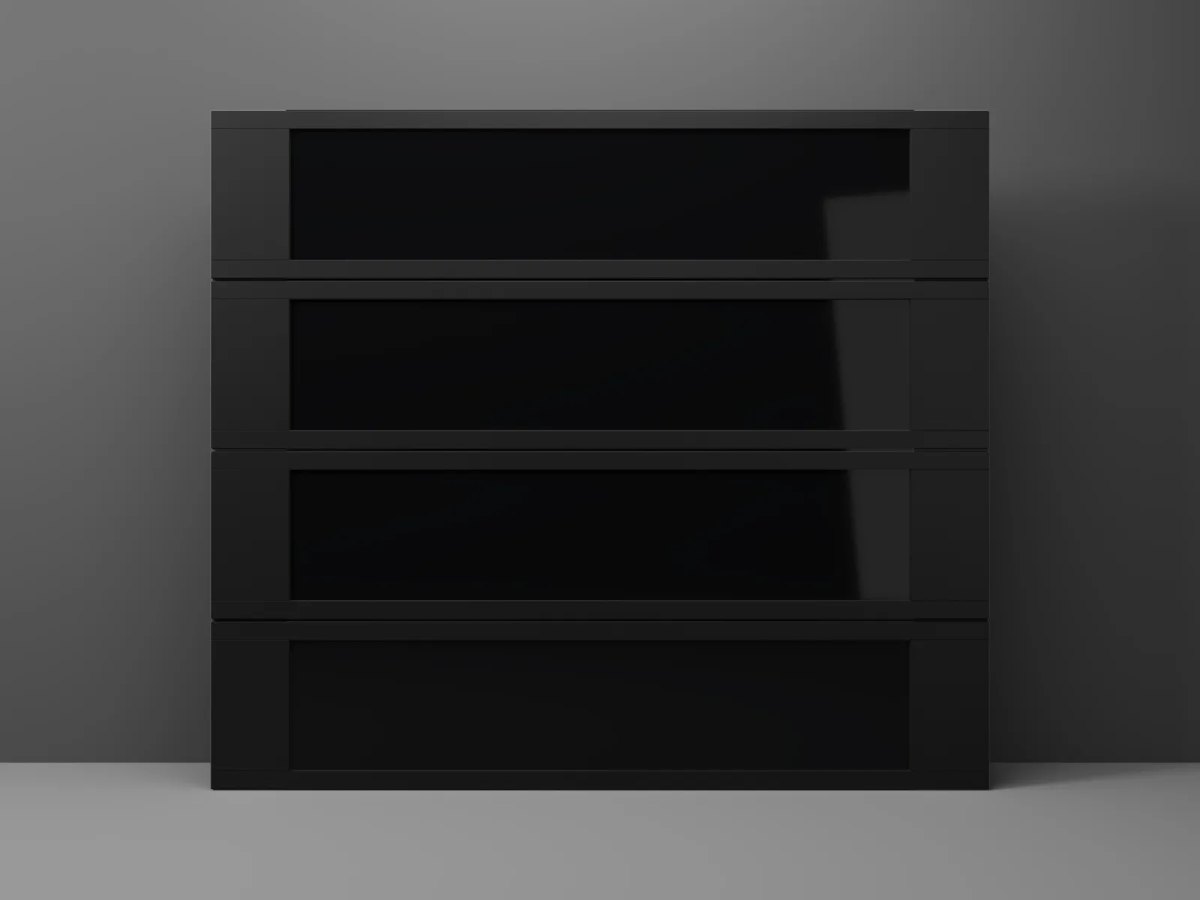

- Connected panes (one band) — wider composite margins and no mullion: one band of connected stock panes per section, running the full height of the section, with a fine joint where they meet. On 8- and 9-ft doors that is three panes — 12″, 53 5/8″ and 12″; a 16-ft door connects a fourth, so the middle reads as two 53 5/8″ lites side by side. The band is centred and the composite takes whatever width is left, so a wider door gets wider margins rather than wider glass.
What you choose
- Glass layout: Aperture style (framed panes) or Connected panes (one band). Neither name carries a pane count, because the count follows the width: two framed lites per section on an 8 or 9-ft door and four on a 16-ft, and a band of three connected panes up to 9 ft and four at 16 ft.
- Insulation: R-10.25 or R-17.65.
- Size: 8×7, 8×8, 9×7, 9×8, 16×7 or 16×8 — both arrangements, every size. The three-connected panes are stock and are never re-sized to suit a door: what changes is the composite margin around them, the pane height, which follows the section (21″ on a 7-ft door, 24″ on an 8-ft one), and the number of panes in the band — three up to 9 ft, four at 16 ft.
- Color: TOB Black, BLX Black, MRO Anthracite Grey, Mica Grey, BSX Metallic Silver or SAW White.
- Glazed sections: all four. A single accent glazed section is a design we can build but do not list yet.
Pricing
Every listed combination carries an exact installed price — the base door for your size, the aluminium composite actually on the face, the glass by the piece, and the heavy-duty hardware the extra panel weight needs. Nothing is added up from option surcharges. Where a combination is not listed the configurator asks for a quote rather than showing a number we have not worked out.
Every size and finish is photographed — 72 fronts, one per size, finish and arrangement, each modelled from the piece list above rather than tinted from one master picture.
Construction, glass and finish details shared by every ACM design are in the Construction & Materials tab.
How an ACM door is built
An ACM door starts as a real insulated steel sectional door and is clad in 4 mm ALPOLIC aluminium composite. Every face is routed and folded from a single sheet, so the panel you see has no applied edge trim, and it stands 5/8″ proud of the door face. The leaf is four sections of 2″ thickness, and the section joints stay visible as they do on any sectional door — the pattern is applied to a door, not printed on a slab.
Base door and insulation
- Base: insulated steel sectional door, R-10.25 or R-17.65.
- Hardware: the heavy-duty hardware upgrade the added panel weight requires is included.
- Sections: four per door — 21″ on a 7-ft door, 24″ on an 8-ft door.
Colors
ACM is its own finish family: composite is never finished in the woodgrain steel colors, and steel is never finished in the composite ones. On the two hybrid doors — the Duet and the Wood Band — both materials sit on the same leaf, and each keeps its own palette.
- TOB Black
- BLX Black
- MRO Anthracite Grey
- Mica Grey
- BSX Metallic Silver
- SAW White
Glass
Glazed ACM designs use 3 mm dark tint glass, recessed to the base plane so the ACM stays the outermost surface. Panes are used at their stock cut sizes and are never re-cut to fit a layout — where a width will not divide exactly, the design absorbs it in the ACM, not in the glass.
Panel gaps and proportion
The reveal between panels runs 3/8″, 1/2″, 3/4″ or 1″. It is chosen by the layout for the proportion of your door rather than offered as a separate choice, which is also why panel widths within a design are not always equal.
Sizes
8×7, 8×8, 9×7, 9×8, 16×7 and 16×8. Every repeating ACM design — Slate, Staggered, Cadence, Gradia, Meridian, Linea, Mirage — is offered in all six, and so are the Onyx in both of its pane arrangements and the two hybrids, the Duet and the Wood Band. Only the Half View lists its own sizes under Model Specifications instead: its bays are 16-ft.
About the renderings on this page
Please note: Visual renderings are solely for visualization purposes — they do not reflect exact colors, dimensions or layouts. For an exact idea of how the door panels and glass will be spaced, sized and laid out, please speak to a sales rep and request a dimensional breakdown or tech sheet.

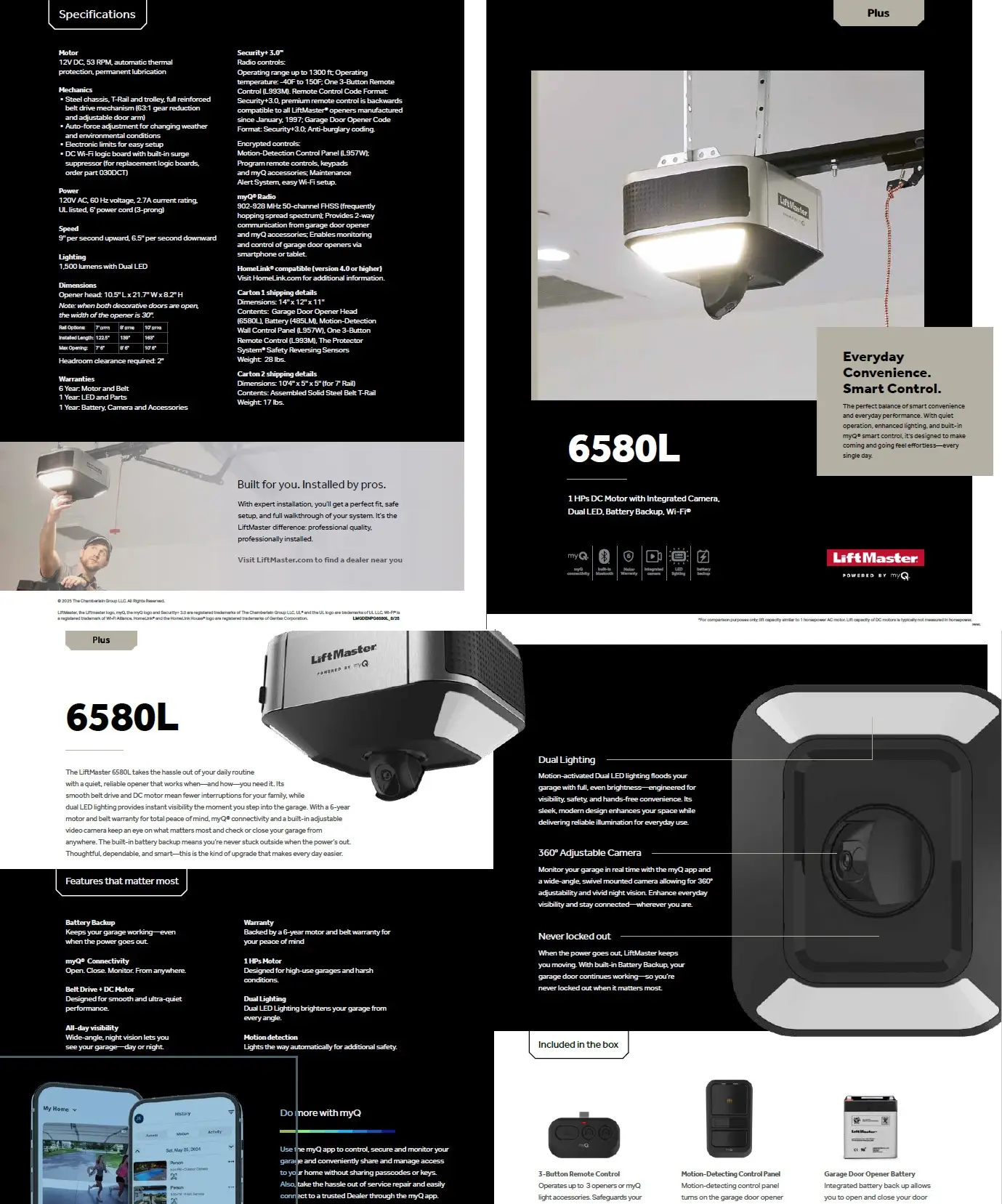

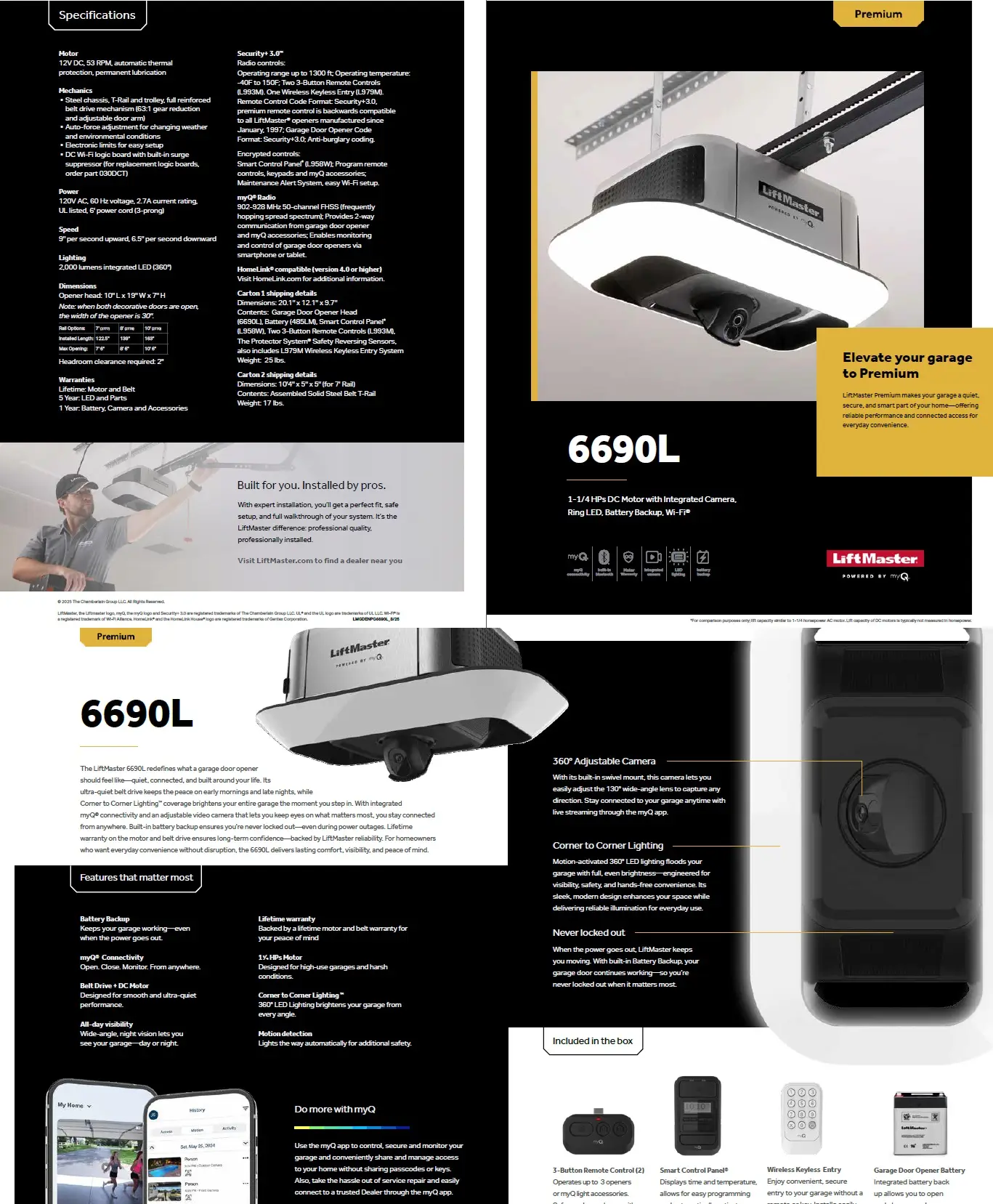

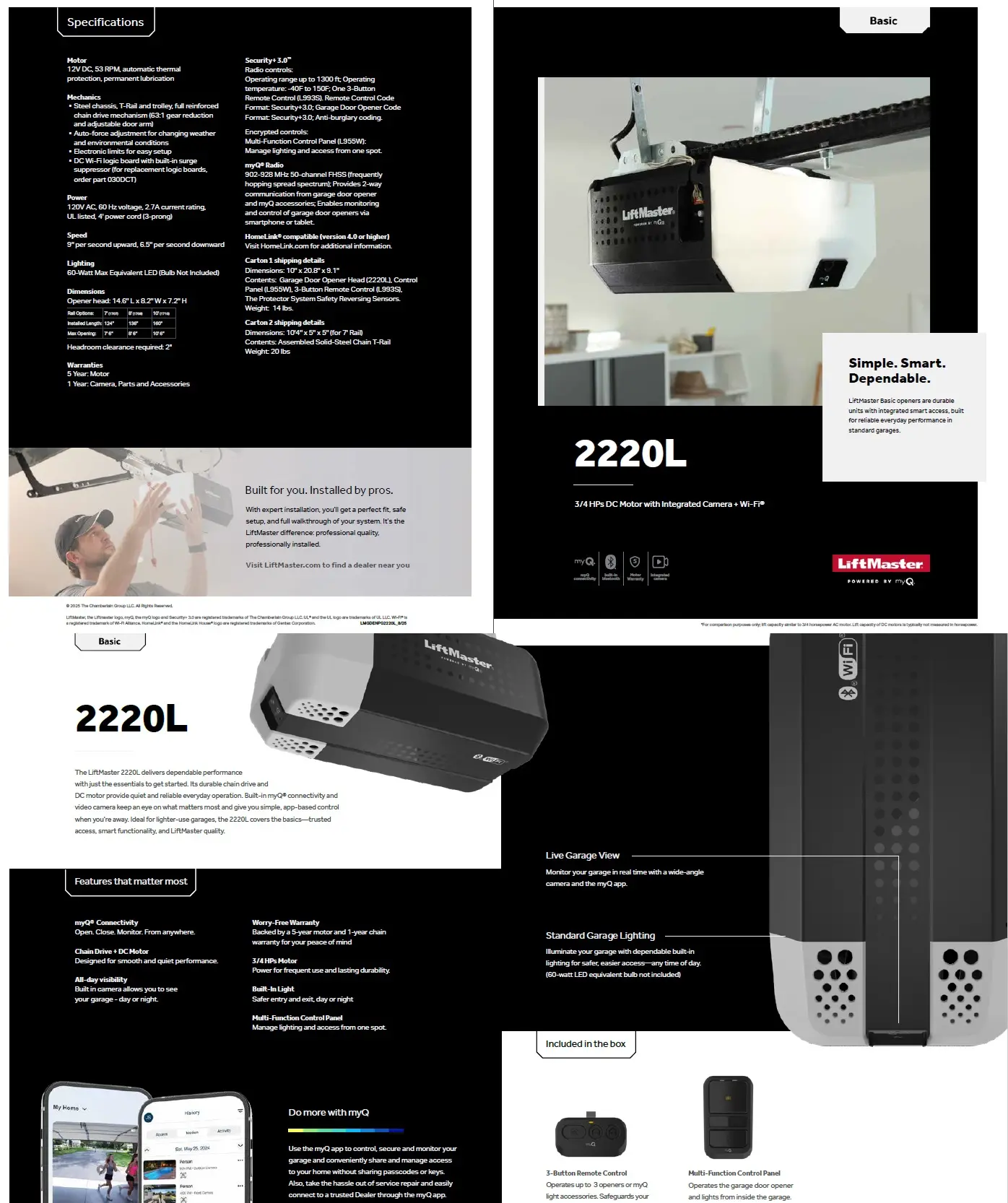

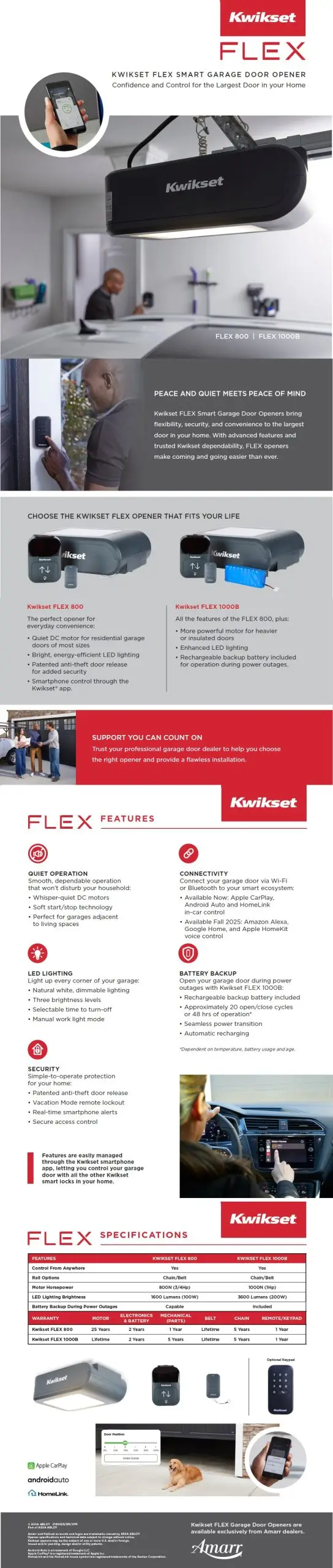

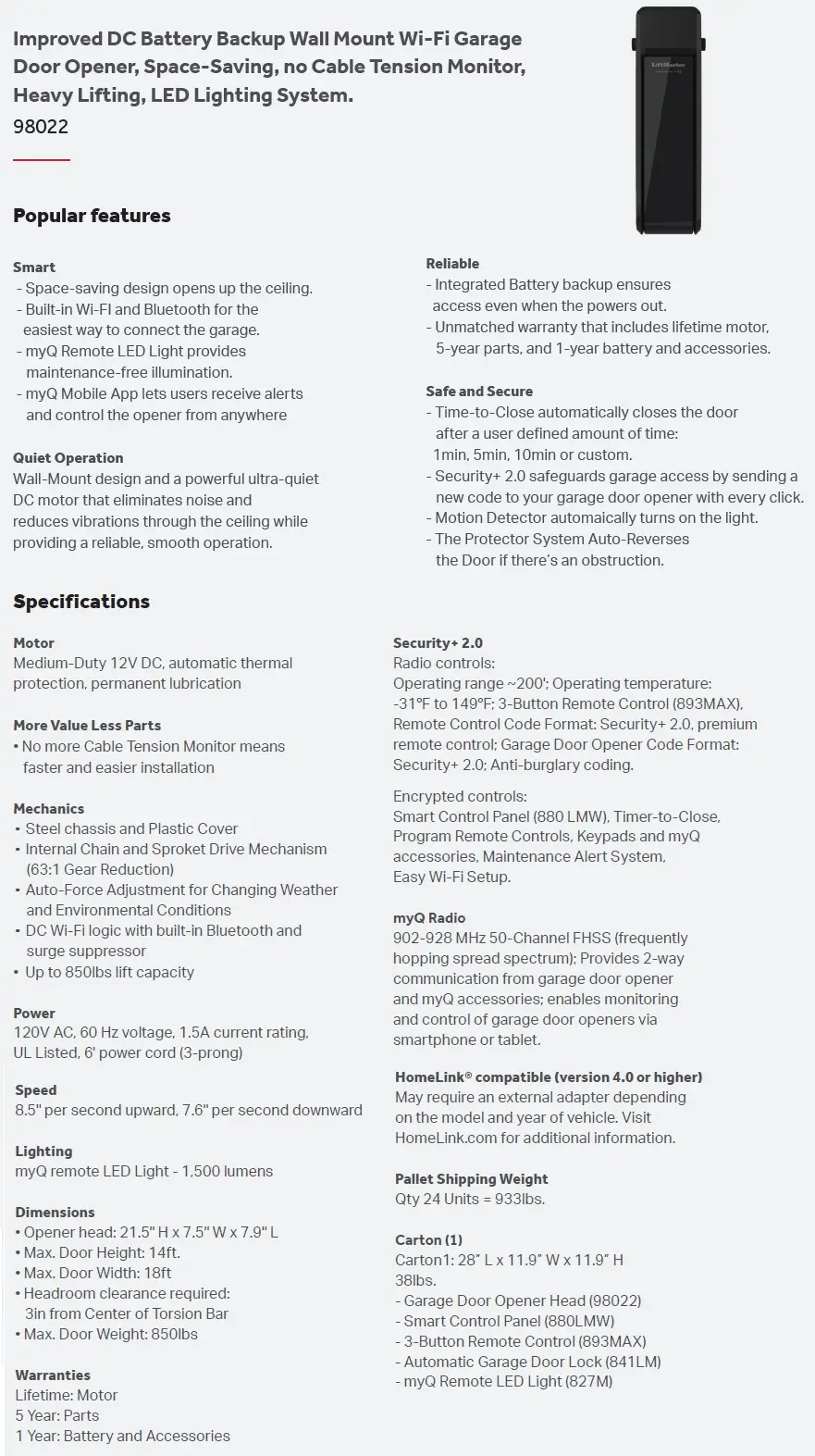

Below are specifications of all Garage Door Motor Options
LM L979M WIRELESS KEYPAD MAX:
- Compatible with most major brands of Garage Door Openers manufactured after January 1997.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (PIN codes, set schedules, notifications, access history and battery status) with Security+ 3.0 Garage Door Openers.
- Users can program temporary PIN codes for friends and service people.
- Closes the Garage Door instantly with one press activation
LM 878 Max Wireless Keypad
- Features Security+ 2.0® rolling code technology
- One-button-to-close feature (works with all LiftMaster garage door openers manufactured since 2006)
- Temporary password option, Program code directly from keypad
- Backlit keypad, Includes 9V battery
- Compatible with all LiftMaster garage door openers manufactured since January 1993
KSWKP WIRELESS KEYPAD KWIKSET
- Compatible with Kwikset FLEX openers
- Open or close the garage door without using a remote
- Includes 9V battery
LM 893 Max 3-Button Remote Control
- Controls up to three garage door openers, gates or myQ® enabled light devices
- Features Security+2.0 rolling code technology
- Compatible with all LiftMaster garage door openers manufactured since January 1993, and all 315MHz LiftMaster and ELITE gate operators
LM L932M 2 BUTTON KEYCHAIN MAX
- Compatible with up to three Garage Door Openers, Gate Operators, or Commercial Door Operators manufactured by LiftMaster after 1997.
- Extra-long range for extended reach and reliable operation.
- Easier programming with automatic frequency detection.
- Program in myQ app and access features (naming, notifications and access history) with Security+ 3.0 and Security+ 2.0 Garage Door Openers.
- Fits on a keychain, backpack or in a purse or pocket
KSTX3 FLEX REMOTE 3 BUTTON
- Compatible with Kwikset FLEX openers
- Controls up to three Garage doors
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
KSTX1 FLEX REMOTE 1 BUTTON
- Compatible with Kwikset FLEX openers
- Controls one garage door
- Flexible to use as visor mount or keychain remote
- HomeLink compatible
- 315MHz frequency
- Powered by 2032 coin cell battery (included)
Installation
Every Modern Decor garage door can be installed by our own crews. Installation is quoted separately and is never included in a listed price — the price on this page is for the door as configured, and your written quote itemises the rest.
Sold and installed by Modern Decor Supply LLC, NJ Home Improvement Contractor Reg. #13VH13488900, from our Hackensack, NJ showroom — serving New Jersey, New York, Pennsylvania and Connecticut.
Before you order
- Measure the opening, not the old door. The How to Measure Garage Opening tab shows exactly what to measure.
- Check your headroom and jambs. Track and headroom options — standard radius, low-headroom, high-lift, vertical-lift and follow-the-roof-pitch — are chosen in the configurator above, and each option states the headroom it needs.
- Decide on the opener while you are there: motors, keypads and remotes are all quoted with the door.
Lead time
These doors are made to order. The production time for your exact configuration is confirmed in writing with your quote — ask us and we will tell you what we are running the week you order, rather than publishing a number that drifts.
